Solar Energy Storage System(Rack-Mount Inverter+Battery) HBP1800 RT Series (5.2KW)

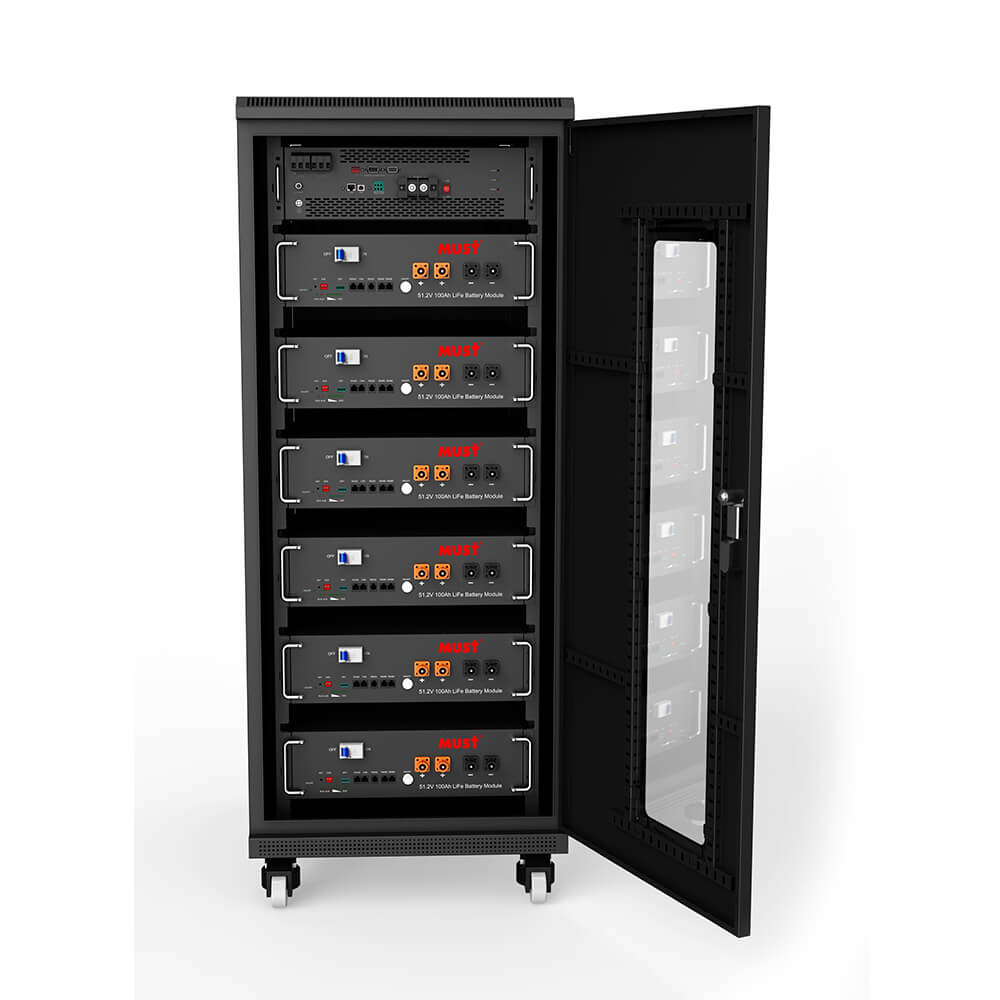

MUST 19” Rack-Mount 3U lithium battery energy storage system is an all-in-one solar and storage solution which integrates the solar inverter andLiFePO4 battery enclosure into a pre-wired modular system for easier and faster installation.
Features:
- 10-30KWh Energy;
- LiFePO4 battery pack;
- Modular, Scalable & Proven Performance;
- Rack-Mount Solar Inverter.

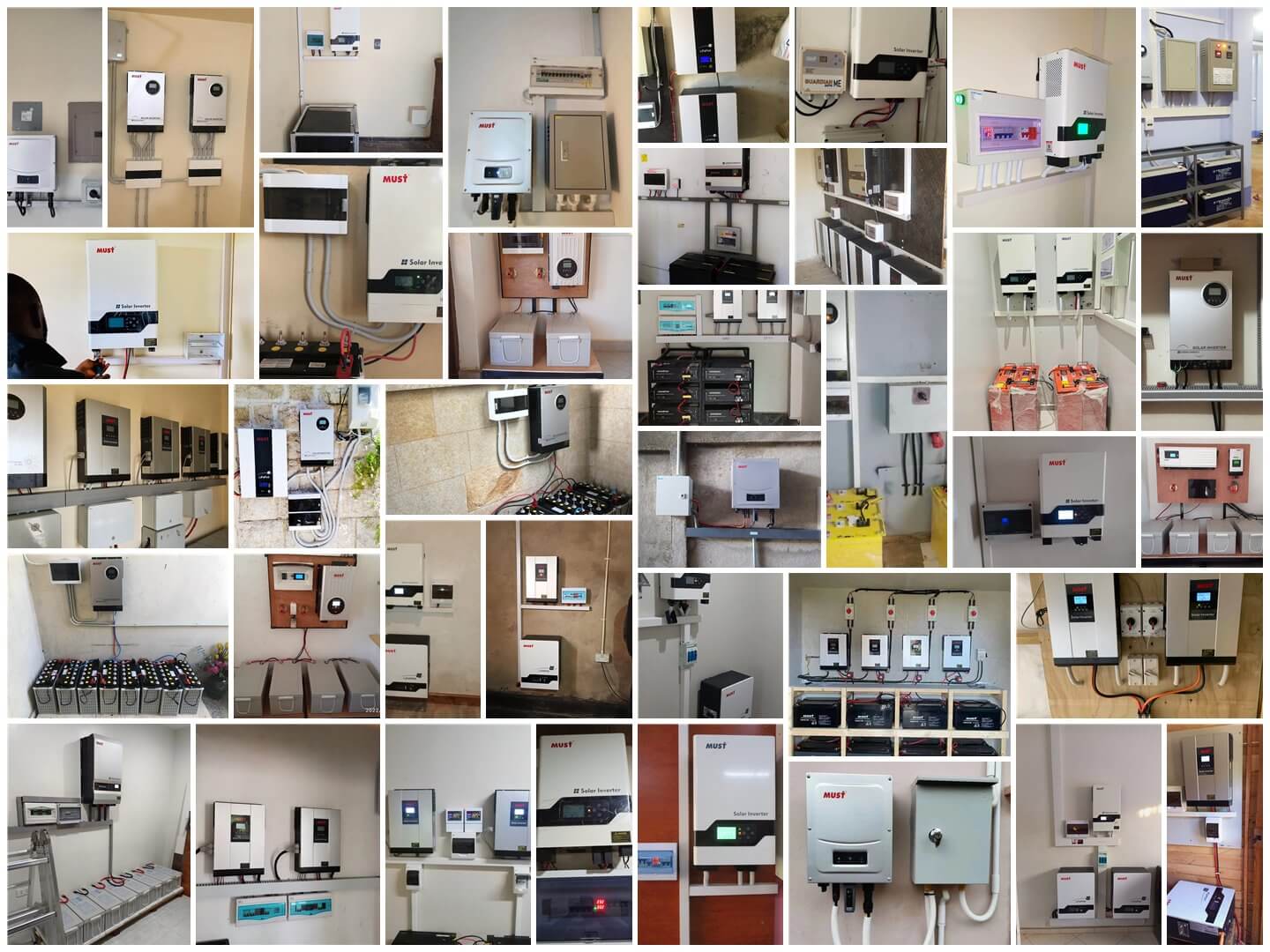

↓↓↓Installation Portfolio————
Visits: 144
| MODEL | HBP1800 RT | ||
|---|---|---|---|
| Inverter | |||
| Rated power | 5200W | ||
| Output voltage waveform | Pure sine wave | ||
| Output voltage regulation | 230VAC ±5% | ||
| Output frequency | 50Hz or 60Hz (±0.2Hz) | ||
| Peak efficiency | 93% | ||
| Nominal DC input voltage | 48Vdc | ||
| Standby Consumption | < 25W | ||
| PV Input | |||
| Max solar power input | 4000W | ||
| PV max charging current | 80A | ||
| Combined charging current | 80A | ||
| Max efficiency | 98% max | ||
| PV array open circuit voltage | 450VDC | ||
| PV Array MPPT Voltage Range | 150~430VDC | ||
| AC Input | |||
| AC input voltage | 230VAC ±5% | ||
| Acceptable input voltage range | 170~280VAC | ||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | ||
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | ||
| AC Charge | |||
| Charging current @ Nominal input voltage | 60A | ||
| Charging Algorithm | 4-step (Li) | ||
| Lithium Battery | |||
| Energy | 10Kwh | 20Kwh | 30Kwh |
| Nominal voltage | 51.2V | ||
| Battery capacity | 51.2V 100Ah 3U Module×2 | 51.2V 100Ah 3U Module×4 | 51.2V 100Ah 3U Module×6 |
| Standard charging and discharge current | 100A | ||
| Maximum continuous charging & discharge current | 100A | ||
| Battery Protection | BMS Battery Management System Dynamic Protection | ||
| Operation ambient temperature | 0~45℃ | ||
| Storage ambient temperature | -20~55℃ | ||
